Strobe Siren Series-LS-104

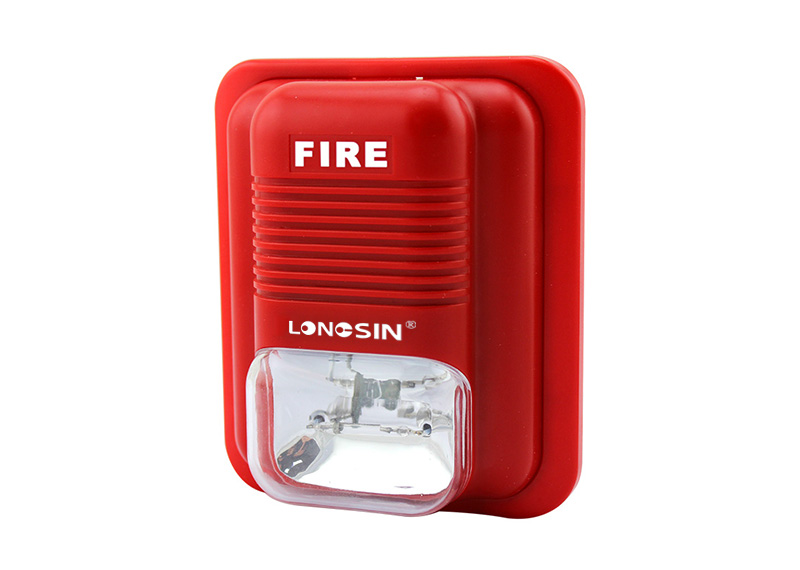

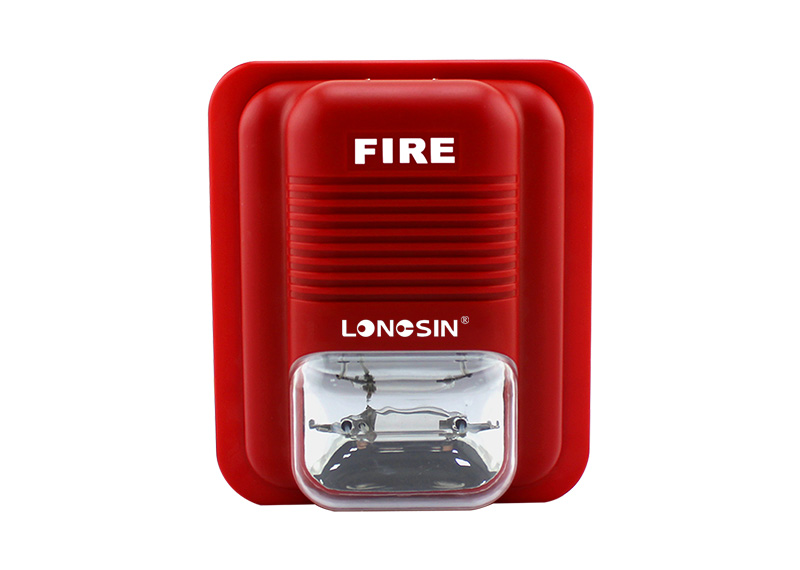

Strobe Siren Series content the Sound-light Fire Alarm apparatus are one kind terminal device for alarm, it is fit for the sound & light alarm when the fire happens.
Technical Parameters
1.Operating Voltage：12VDC
2.Working Current：100mA-150mA
3.Temp Range：-10-+50℃
4.Humidity Range：≤95%RH
5.Flash Intencity：≥1.2WS
6.Flash Period：≤1.5S
7.Life of flash light：≥40000 time
8.Audio Alarm：≥100dB
9.Provenience of sound alarm：ⅠContinuous beep-beep….Ⅱbeep-pause-beep-pause…..(two kinds)
10.Dimensions：133*115*50mm
Product Spec
| Main Featur | |||||||
| Model | Sound of fire engines |
Sound of ambulance | Sound of police | Red | LED light | Sound | Flash |
| ls-104 | √ | √ | √ | √ | – | √ | √ |
| ls-104-1 | √ | √ | √ | √ | √ | √ | √ |
| Technology Parameter | |||||||
| Model | Operating voltage |
Flash span | SPL | Operating current |
Flash frequency | ||
| ls-104 | DC12V/24V | ≥4000 times | ≥90db/m | 80-120mA | ±76times/min | ||
| ls-104-1 | 24V | ≥4000 times | ≥90db/m | 80-120mA | ±76times/min | ||
